key Spec
380 sq ft
1 Bed
1 Bathroom
1 Floor
0 Garage
Plan Drawings for Permit Application
Front Elevation
Left-Side Elevation

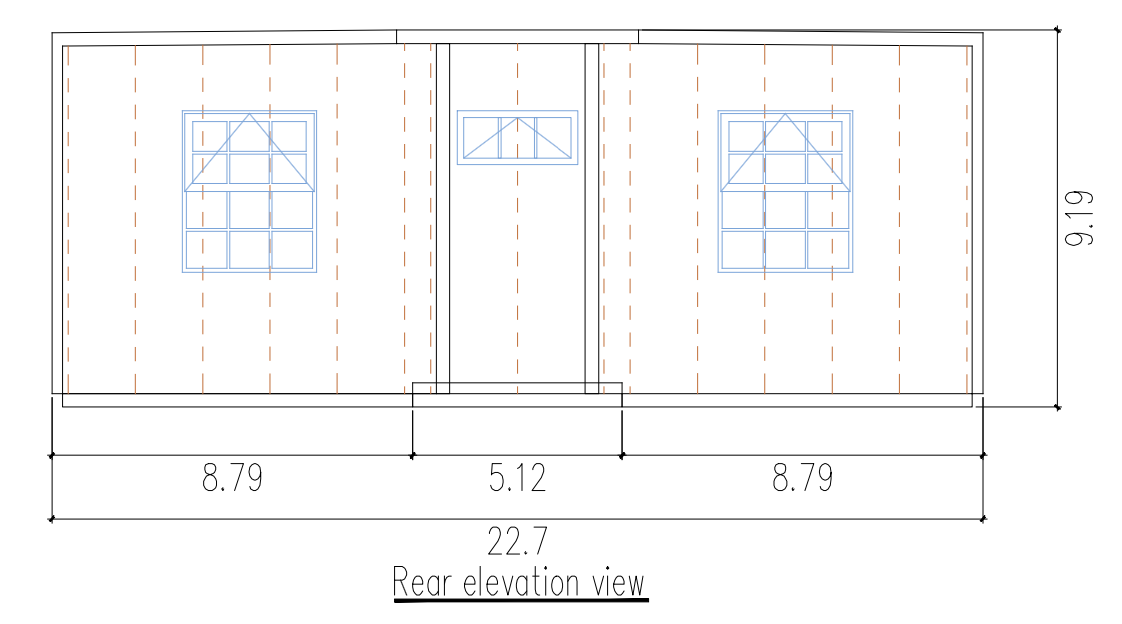

Rear Elevation

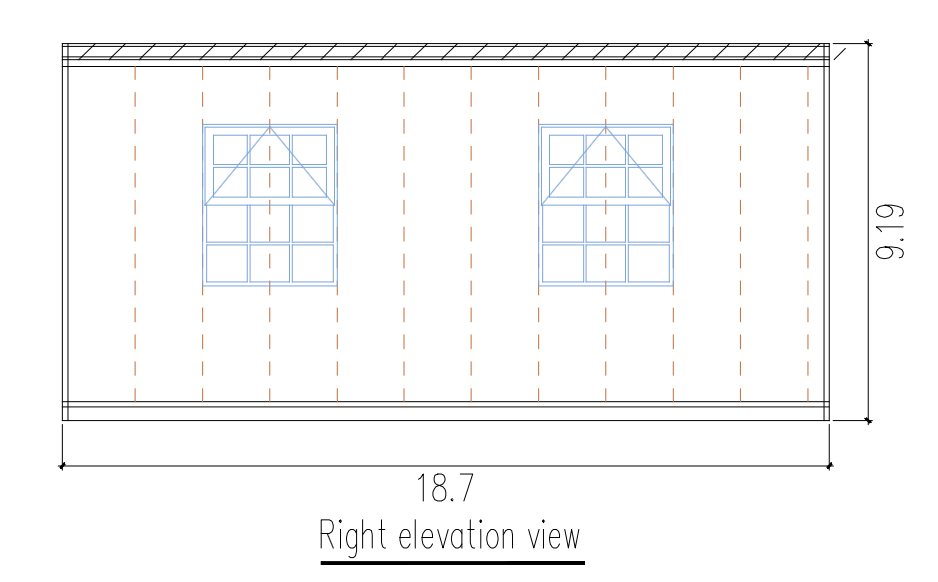

Right-Side Elevation
First Floor Plan
Full Specs & Features
| Basic Features | Bedrooms : 1 | Baths : 1 |
| Stories: 0 | Garages: 0 | |
| Dimension | Width : 21' | Height : 9'-2'' |
| Depth : 19'-4" | ||
| Area | Total : 380 sq ft | |
| Main Floor : 380 sq ft | Garage : no garage for this model | |
| Porch : 100 sq ft | Storage : 0 | |
| * Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks. | ||
| Ceiling | Main Ceiling : 9' | |
| Roof | Primary Pitch : 1:1.5 | Roof Material: steel standing seam roof |
| Roof Framing : steel framing | ||
| Roof Type : gable roof | ||
| Exterior Wall Framing | Exterior Wall Finish : White color high density fiber cement | Framing : steel structure support wind load 150m/h |
| *Tested to ASTM standards for air and water infiltration, and structural windload performance meeting a DP70 rating. | ||
| Windows & Door | Window | Door |
| *Frame Material---vinyl | *Right-hand out-swing door | |
| *Operational Style: | ||
| *LowE Dual Glaze | ||
| -U-Factor: ≤0.25 | ||
| -R-Value: 5.0 | ||
| -SHGC(Solar Heat Gain Coeffient)： | ||
| -VT(Visible Transmittance): | ||
| -CR(Condensation Resistance): | ||
| Insulation | * Floors: Minimum R-value of R-30 | |
| * Ceilings: Minimum R-value of R-60 | ||
| * Wood frame walls: Minimum R-value of R-30 | ||
| * Exterior walls: R-25 | ||
| * Material: ？？mineral wool blanket？？ | ||
| Bedroom Features | Main Floor Bedroom | |
| Closet | ||
| Kitchen Features | Breakfast Nook | |
| Eating Bar | ||
| Kitchen Island | ||
| Additional Room Features | Den Office Study Computer | Mud Room |
| Great Room Living Room | Storage Area | |
| Main Floor Laundry | Workshop | |
| LED Recessed Lights | ||
| Garage Features | Side Entry Garage | |
| Lot Characteristics | Suited For Corner Lot | Suited For View Lot |
| Outdoor Spaces | Covered Front Porch | Covered Rear Porch |
| More | Economical To Build |
